I have a 2710 with a bridge that I assumed what an after market replacement. Then this one popped up on ebay, which looks exactly like the bridge on my guitar. Is it possible that some of the Artist Customs left the factory with this type of bridge? I'm really just curious because if the bridge is not a replacement then my axe qualifies as "all original". Any help is greatly appreciated.

Here's the link:
http://www.qksrv.net/click-1802666-10381315?loc=http://cgi.ebay.com/ws/eBayISAPI .dll%3FViewItem%26item%3D7376948388
Top of pagePrevious messageNext messageBottom of page Link to this message

Dave_g
Username: Dave_g

Registered: 01-2002
Posted on Friday, December 23, 2005 - 3:24 pm:

Eadams,,That bridge was not used on the Artist guitars-its an Ibanez bridge typically used on a LP clone. The Artists used either the Harmonic-o-matic (#198) wide bridge or a gibralter. This bridge is what is typically on a LP clone, except that the posts are not like ANY I have ever seen on an Ibanez ! They look like the Koren Tune-o-matic Gibson knockoffs. I have never seen a thin post like that on an Vintage Ibanez, only Epiphone's. The posts even look too thin for the holes in the bridge !
Top of pagePrevious messageNext messageBottom of page Link to this message

Lespaul
Username: Lespaul

Registered: 10-2004
Posted on Friday, December 23, 2005 - 3:44 pm:

Can someone please post a pic? I can not see the link.

Thanks.

Paul
Top of pagePrevious messageNext messageBottom of page Link to this message

Johns
Username: Johns

Registered: 02-2001
Posted on Friday, December 23, 2005 - 4:04 pm:

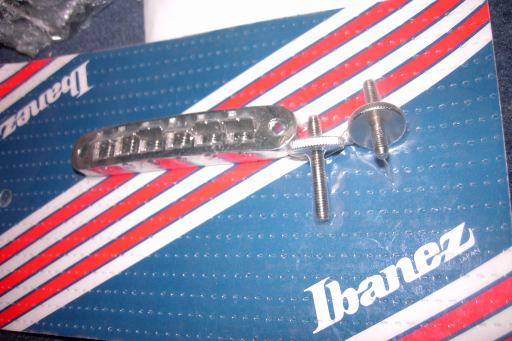

Here's the photo of the ST bridge:

STBridgeThinPosts

This is the bridge that I need for my '76 Scruggs, except I need gold. I also have this "thin post" ST bridge on my AS200. I've never seen a NOS one, before.
Top of pagePrevious messageNext messageBottom of page Link to this message

Eadams
Username: Eadams

Registered: 01-2005
Posted on Friday, December 23, 2005 - 5:18 pm:

Thanks for the responses. I figured it was not original, but I just wanted to be sure. Someday I would like to get a NOS bridge that is correct for the guitar, but they seem relatively hard to come by, and pricey when they do pop up. Thanks again for your help.
Top of pagePrevious messageNext messageBottom of page Link to this message

Lespaul
Username: Lespaul

Registered: 10-2004
Posted on Friday, December 23, 2005 - 5:46 pm:

@ JohnS: thanks (as always)

@ DaveG: this bridge with these posts is/are used on all my 2650 models. So, together with the ones JohnS just announced there are at least three different models bearing this configuration.

Paul
Top of pagePrevious messageNext messageBottom of page Link to this message

Fox
Username: Fox

Registered: 02-2003
Posted on Friday, December 23, 2005 - 7:18 pm:

First of all, sorry about off-topic.. I have now for some time restored a 2617 Artist..
It is from 1976, so the first ones. I have somewhat problems in trying to figure the biridge & tailpiece, from "shadows" on the very top it seems that it has been equipped with a narrow tune-o-matick type bridge and standard bar-type tailpiece..
But I would kindly ask for "second opinion"..

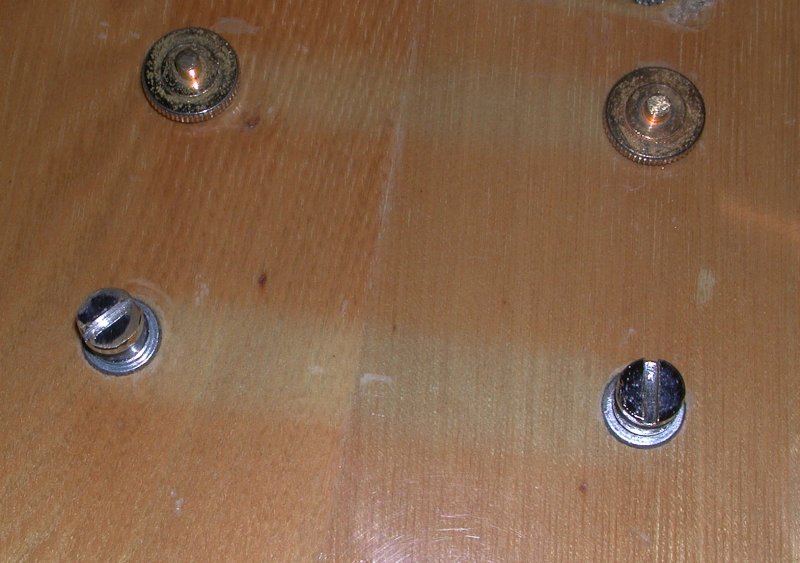

Here is the picture:
2617 top

PS: A Merry Christmas & Happy New Year everyone!
Top of pagePrevious messageNext messageBottom of page Link to this message

Dave_g
Username: Dave_g

Registered: 01-2002
Posted on Friday, December 23, 2005 - 7:54 pm:

Les/John..Are you sure? I have several guitars that have this bridge on it, but non of them have the real thin posts-those are exactly like the ones on my Gibson SG's from the 70's. What looks weird to me is-even look at the picture above-the hole in the bridge looks WAY to big for those posts-looks like it would be so lose that it would rattle around.....I have seen impprt bridges with the smaller holes to accomodate that type of post, mostly Koren made (like epiphone)
Top of pagePrevious messageNext messageBottom of page Link to this message

Ibanezcollector
Username: Ibanezcollector

Registered: 11-2003
Posted on Friday, December 23, 2005 - 11:07 pm:

Dave,
These bridges were used on several of the Greco LP'S. My 2675 had the real thin post. I had a heck of a time finding one that would fit. Orval posted something way back about using bushings or metal inserts from the Hardware store to make up for the difference so the standard or more commonly found ST bridges would fit. It's an easy and quick fix.
Top of pagePrevious messageNext messageBottom of page Link to this message

Lespaul
Username: Lespaul

Registered: 10-2004
Posted on Saturday, December 24, 2005 - 6:42 am:

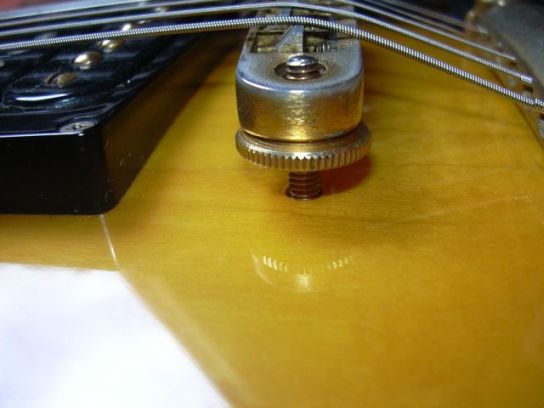

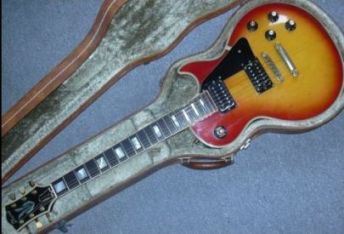

Dave, check one of my 2650: this is what I mean. Not sure we are on the same level.

Paul

1
2
3
Top of pagePrevious messageNext messageBottom of page Link to this message

Dave_g
Username: Dave_g

Registered: 01-2002
Posted on Saturday, December 24, 2005 - 1:04 pm:

Paul..looks legit to me, don't think I've ever seen one on an Artist though
Top of pagePrevious messageNext messageBottom of page Link to this message

Lespaul
Username: Lespaul

Registered: 10-2004
Posted on Saturday, December 24, 2005 - 2:11 pm:

Hey Dave: Seems to me Fox's just shown you one...

Have a good one everybody!

Paul
Top of pagePrevious messageNext messageBottom of page Link to this message

Pitviper
Username: Pitviper

Registered: 08-2005
Posted on Saturday, December 24, 2005 - 9:48 pm:

Paul is that faux pearl or the real thing on your 2650?
Top of pagePrevious messageNext messageBottom of page Link to this message

Fox
Username: Fox

Registered: 02-2003
Posted on Sunday, December 25, 2005 - 8:16 pm:

Dave_g, there is another picture in address http://www.ivc.ca/misc/artist/images/2617.jpg that looks quite like the possible bridge/tailpiece combination judging by the "tanning lines" on my 2617 top.. So maybe I have to hunt down a similar bridge like that on the above pictured LP copy... Plus a std bar tailpiece.. Plus a full set of pearloid-button VelveTune machines.. and lots of other bits & pieces..
Top of pagePrevious messageNext messageBottom of page Link to this message

Lespaul
Username: Lespaul

Registered: 10-2004
Posted on Monday, December 26, 2005 - 7:02 am:

You mean the fretmarkers, Pitviper? That is pearloid.

Paul
Top of pagePrevious messageNext messageBottom of page Link to this message

Fox
Username: Fox

Registered: 02-2003
Posted on Monday, December 26, 2005 - 7:29 am:

Btw. fellow Ibanezers, please notice the absence of the sustain block.. I believe that the very first 2617:s were not equipped with such luxury feature..
Also, the tailpiece was definitely bar-type, without the "cloud"..there are absolutely no screw holes as you can see. Not even filled ones.
Top of pagePrevious messageNext messageBottom of page Link to this message

Johns
Username: Johns

Registered: 02-2001
Posted on Monday, December 26, 2005 - 9:19 am:

Fox:

You are right that the first Artists (not just the 2617s) did not have sustain blocks. This didn't show up until very late in '77 and it was part of the switch to the Gibraltar I bridge. This is the general time for the introduction of the 2 piece cloud tailpiece.

However, I have seen all the following factory-original variations, starting from '75 thru '77:

thin ST bridge/bar stop tail
thin ST bridge/fancy engraved tail
thin ST bridge/1 piece cloud
wide Harmonomatic bridge/fancy engraved tail
wide Harmonomatic bridge/1 piece cloud
Top of pagePrevious messageNext messageBottom of page Link to this message

Fox
Username: Fox

Registered: 02-2003
Posted on Monday, December 26, 2005 - 10:46 am:

Johns, I think I go for thin bridge and std bar stop tailpiece, I believe they have been "original" on that 2617.. Had there been engraved fancy tailpiece, the "shadow" would be even on both sides of the studs..and a bit wider. Maybe I get that project finished in a week or two... :-)
