'86 PL1770 wiring diagram? Log Out | Topics | Search
Moderators | Edit Profile

Ibanez Collectors World » Cool Contemporary Electrics (1980s and Later) » '86 PL1770 wiring diagram? « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

1bend
Username: 1bend

Registered: 6-2007
Posted on Thursday, June 14, 2007 - 10:05 am:

Does anyone have one? Have been searching for awhile but can't seem to find one. I believe the PL2550 has similar wiring if anyone has info on that. The ones on the Ibanez website don't back far enough in time.

thanks!
Top of pagePrevious messageNext messageBottom of page Link to this message

Danix
Username: Danix

Registered: 11-2004
Posted on Thursday, June 14, 2007 - 1:46 pm:

No diagram, but I can have a look into any of mine if you have a specific troublespot. Or do you need to do it from scratch?
Top of pagePrevious messageNext messageBottom of page Link to this message

1bend
Username: 1bend

Registered: 6-2007
Posted on Thursday, June 14, 2007 - 4:07 pm:

No, the previous owner put in Dimarzio pickups and the coil split does not work (no single coil). I figure the push pot is bad or the connections are wrong. But I won't know what the correct connections are...

Seymour Duncan and guitarelectronics.com have some good hints, however. I should be able to piece it together.
Top of pagePrevious messageNext messageBottom of page Link to this message

1bend
Username: 1bend

Registered: 6-2007
Posted on Thursday, June 14, 2007 - 7:01 pm:

There is a yellow wire going from the circuit board of the 5 button switch to nowhere...should this go to the 5 position (toggle) switch, as there seems to be a spot where it should go? I hope Ibanez used the same color wire in all their PL's!

If you have the time, that would be super helpful.
Top of pagePrevious messageNext messageBottom of page Link to this message

Telstar
Username: Telstar

Registered: 4-2006
Posted on Friday, June 15, 2007 - 5:30 am:

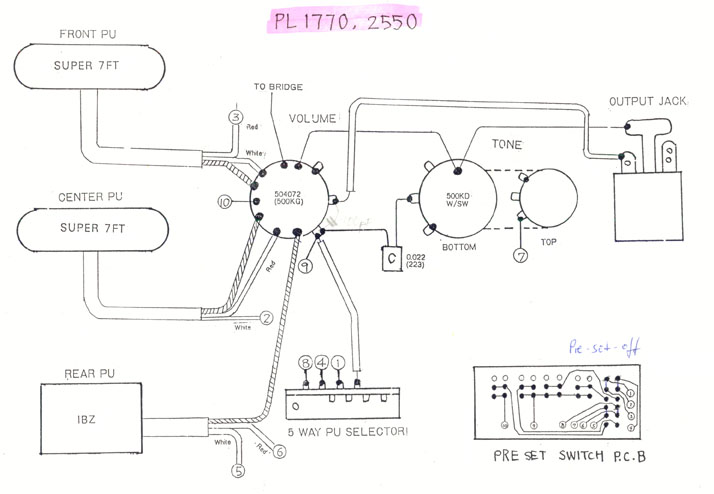

this may help, 1bend:

PL1770-2550

greetz,
rob
Top of pagePrevious messageNext messageBottom of page Link to this message

1bend
Username: 1bend

Registered: 6-2007
Posted on Friday, June 15, 2007 - 9:35 am:

Whoa! That helps a lot! Thanks so much.
Top of pagePrevious messageNext messageBottom of page Link to this message

1bend
Username: 1bend

Registered: 6-2007
Posted on Friday, June 15, 2007 - 2:29 pm:

Well I just finished putting in a Seymour Duncan Stag Mag- designed for coil splitting and has a less overdriven tone as compared to the Dimarzio- and everything seems to work fine. Perhaps the solder joints were a bit cranky with age.

Thanks for everyone's help.
