Interesting animal...

Made in 1995 from leftover vintage parts, including trisound Super 80's, sustain block and cloud. Comes with nice Custom Legend manual.

I think it's closer to a late 70's 2619 rather than an 80's AR300. Does anyone know how it's wired, specifically series/single/parallel or series/single/phase reversal? With Super 80's, I've only seen the latter combination.

Also..."Team JCraft" - it's used nowadays, however, not when this one was made...

Ebay Item #170126346693

mk
Top of pagePrevious messageNext messageBottom of page Link to this message

Michaelkaufman
Username: Michaelkaufman

Registered: 11-2002
Posted on Sunday, July 01, 2007 - 11:38 am:
bump
Top of pagePrevious messageNext messageBottom of page Link to this message

Michaelkaufman
Username: Michaelkaufman

Registered: 11-2002
Posted on Sunday, July 01, 2007 - 11:41 am:

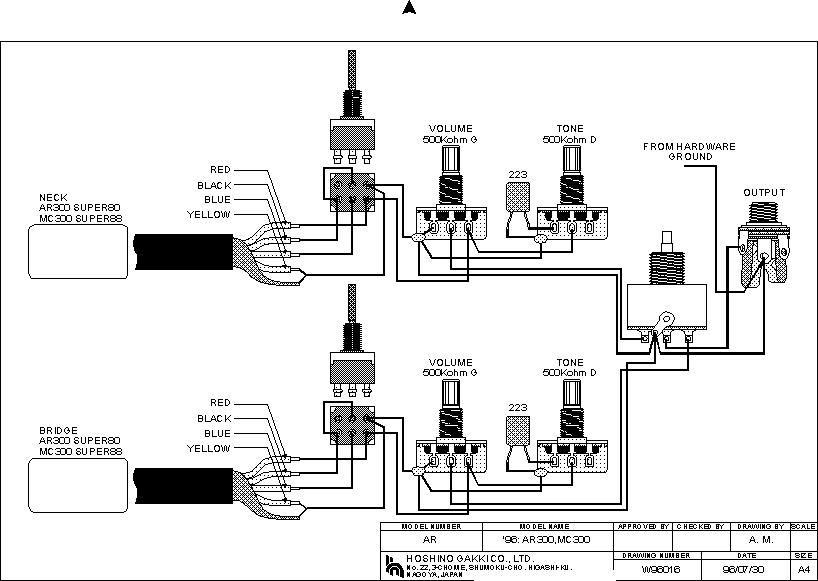

Here's the wiring diagram from the Ibanez website:

1

mk
